About us

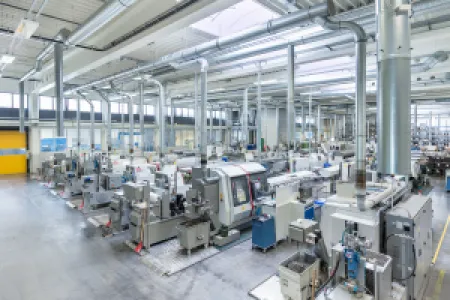

In 1938, Erwin Halder began production of the SIMPLEX soft-face mallet, laying the foundation for the success the company enjoys around the world today with branches in Germany, France, Slovenia, South Korea, Japan and the United States. At the head office in Achstetten-Bronnen alone the company employs a staff of around 220, while the global workforce has reached over 400. The fate of Erwin Halder KG is currently controlled by Stefan Halder, representing the third generation of the family. Family-owned and operated, the company attaches supreme importance to peerless quality in all of their product segments. The company is in full control of the entire process chain – from development to production to global distribution.
The joint product range offered by Erwin Halder KG and Picard GmbH allows the Halder Group to provide the world’s most comprehensive selection of striking tools. Apart from soft-face mallets and forestry tools, Halder also produces and sells high-precision standard parts, modular fixture systems for clamping workpieces as well as aviation products. Conforming to DIN/ISO and factory standards, the product selection comprises roughly 13,000 standard parts including machine and fixture components, clamping elements, operating elements and machine elements. What is more, Erwin Halder KG is certified for production in compliance with aviation industry standards according to EN 9100:2018. The company's global clientele includes both local craftsmen and corporations operating in the high-tech industry. In addition to offering a standard selection, the company also possesses the expertise and experience necessary to tailor customised solutions to their customers’ specific needs.
Address
Erwin-Halder-Str. 5–9
88480 Achstetten-Bronnen
Germany
E-mail: info@halder.de
Phone: +49 7392 7009-124
Internet: www.halder.com
Contact person:
Juergen Hauger
E-mail: hauger.juergen@halder.de
Products & Services
Erwin Halder KG – Standard Parts & Workholding Systems
Erwin Halder KG is a German manufacturer of high-quality Standard Parts and Workholding Systems for machine building, fixture construction and industrial production.
With more than 13,000 products available from stock, we supply reliable components for positioning, clamping, fastening and operating applications across a wide range of industries.
Standard Parts
Our portfolio of Standard Parts includes:

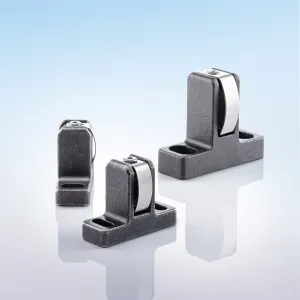

Machine and Fixture Elements
Spring Plungers · Index Plungers · Locking Elements · Ball Lock Pins · Lifting Pins · Grub Screws · Support Elements · Locating and Seating Elements · Thrust Screws · Self-Aligning Pads · Expander® Sealing Plugs · Rod Ends · Oil-Sight Glasses
Clamping Elements
Nuts for T-Slots · Clamping Screws · Precision Slot Nuts · Positioning Clamping Elements · Straight Clamps · Floating Clamps · Down-Thrust Clamps · Toggle Clamps · Compact Clamps · Shaft Clamps · Clamping Plates
Operating Elements
Adjustable Clamping Levers · Tension Levers · Knurled Nuts · Knurled Thumb Screws · Star Grips · Palm Grips · Handwheels · Crank Handles · Tubular Handles · U-Handles · Retaining Latches
Machine Elements
Set Collars · Locking Nuts · Quick Plug Couplings · Levelling Feet · Damping Elements · Hinges · Initiator Elements
All products are designed for durability, precision and easy integration into existing systems. CAD data is available for efficient design processes.
Workholding Systems
In addition to individual components, Halder offers modular and flexible Workholding Systems, including:
T-Slot Systems
Hole and Dowel Systems
Zero-Point Clamping Systems
Multiple Clamping Systems
Multi-Vices
Basic Elements
Our workholding solutions enable reduced setup times, high repeatability and efficient fixture construction in machining and assembly operations.
Our Services

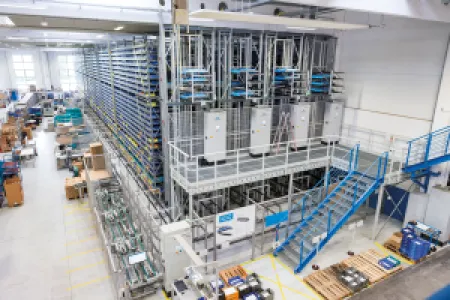

Large stock availability and short delivery times
Technical application support
CAD models for all Standard Parts
Custom solutions and special designs on request
Global distribution network

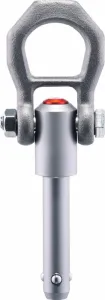

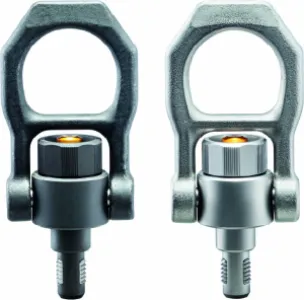

Threaded Lifting Pins self-locking, with rotatable shackle
Heavy-duty lifting element for quick and easy use, with moveable, rotatable shackle and locking stud to provide protection against unintentional unlocking. For lifting loads, the threaded lifting pin is inserted into a threaded hole. In contrast to a ringbolt, time-consuming screwing in and out is therefore unnecessary. The rotatable shackle will always align with the tensile direction of pull without the pin rotating. This prevents the lifting device from being turned out of the thread and the component can be lifted safely.
All versions are corrosion-protected. The version made of stainless steel is also resistant to corrosion and weathering, so it is also suitable for external use. In addition, the high-strength, precipitation-hardened pin makes extreme loads possible.
Lifting Pins self-locking / Lifting Pins self-locking, stainless steel
Lifting pins are quick and easy to use, robust lifting devices for crane-supported or manual lifting and transporting of loads. The hoisting device is TÜV tested and corrosion and weather resistant.

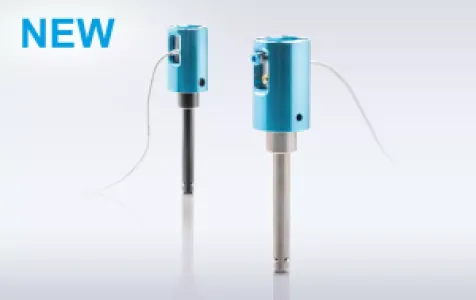

Lifting Pins
Lifting pins are TÜV-tested, quick and easy to use, robust carrying elements with movable shackle or handle. Lifting pins are often also referred to as shackle pins. The load lifting device can be used for crane-supported lifting of loads. Drill holes H11 are sufficient for the operation.
The extensive product range includes various designs from stock:
Steel / stainless steel (suitable for outdoor use)
With moveable shackle / handle (for lifting and carrying by hand)
Up to 1.000 kg load capacity
As accessories we offer
Locating bushings
Locating bushings, plain (for flush installation in components)
Locating bushings with seal, plain (for flush installation in components, additionally with seal to protect against the infiltration of liquids and dirt)
For special applications, special versions can also be engineered and manufactured.
In addition to our lifting pins you can find also threaded lifting pins in our product range.

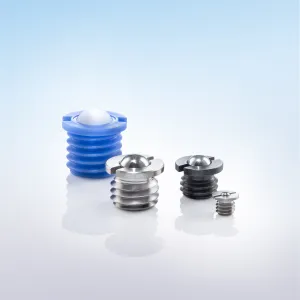

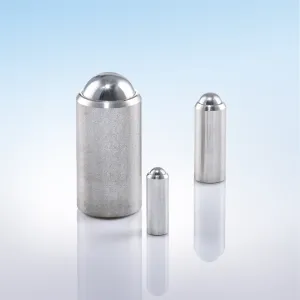

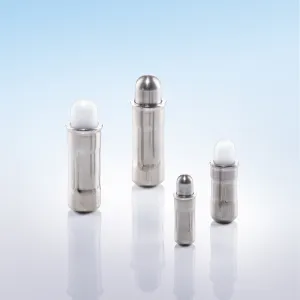

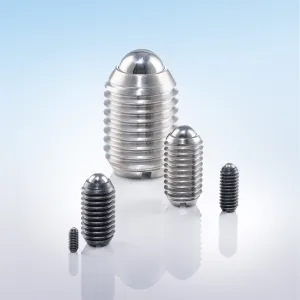

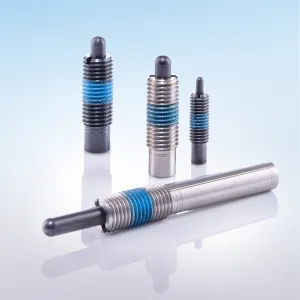

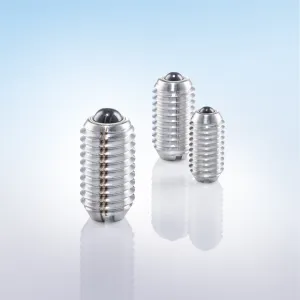

Spring Plungers and Spring Bodies
Spring plungers are spring elements comprised of a ball and a pin. Spring plungers are also often referred to as ball catches. They are suitable for an extensive array of applications across a wide range of different industries, e.g. for fixing, locking in place, positioning and as a detent or for ejection.
The assembly procedure and the specific manufacturing process we use allow us to guarantee a superior level of functional reliability - for example, through certified spring loads and spring travel.
Our exhaustive product portfolio comprises a large number of in-stock designs:
With thread, for screw-in models (M3 to M24), and smooth press-in models (diameter 2 to 12 mm)
Bodies made of steel, stainless steel (1.4305), and plastic
Balls made of hardened steel, stainless steel (1.4305), plastic, and ceramic
Pins made of hardened steel, stainless steel (1.4305) and plastic
Various spring loads (light, standard, heavy)
Installation using internal hexagon and slot
With / without head (threaded model)
With / without collar (smooth model)
Spring plungers with a moving ball are the latest addition to the product family. As well as minimising wear on the counter piece, the plastic mounted balls are electrically insulated.
As an option complementing the threaded model, we also offer thread coatings.
Supplementing our metric product portfolio, selected designs are also available in inch dimensions.
For particular applications, special designs can also be designed and manufactured.

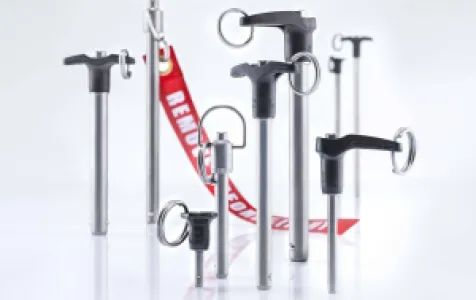

Ball Lock pins, socket pins, clamping pins (safety pins) and matching locating bushings as well as retaining cables
Ball lock pins are self-locking pins. The balls are unlocked without tools by means of a press button. Often ball lock pins are also called locking pin, safety pin or quick release pin. They can be used in many different industries and applications, such as fixing, locking, connecting, adjusting or for a quick change of positions.
Ball lock pins are extremely resistant to shear and corrosion as well as they are optimally protected against wear.
This extensive product range includes various designs from stock:
Different handle versions (T-Handle, L-Handle, mushroom handle, safety handle, standard handle, elastic handle, combination handle in four colour variants - orange, grey, blue and black)
Choice of different materials (stainless steel 1.4305, stainless steel 1.4542 and titanium)
Ball lock pin, self-locking, with adjustable handle (adjustable clamping length)
Socket pin with spring-loaded balls (not self-locking)
Clamping pins, self-locking, with span compensation
As accessories we offer:
Locating bushings for ball lock pins and socket pins
Locating bushings with flange for ball lock pins and socket pins
Retaining cables in different versions
In addition to the metric product range, versions according to the aviation standards (MS17984 - MS17987) are also available in INCH dimensions.
For special applications, customized designs can also be engineered and manufactured.
